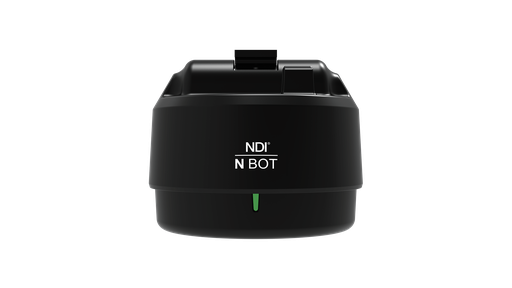

N BOT
Motorised pan/tilt head with built-in NDI encoder. Max 3,2 kg load. 10 presets
Unit of Measure Name:
Units
Internal Reference:
SRW-NBOT
Compatibility with a wide array of cameras
With a LANC connection you can control many video cameraes on the market today. Control functions such as zoom, focus, iris, shutter and commands such as toggle recording and power on or off. Notice that not all cameras support full control over LANC
With the additional Sony Multiport adapter* you can also control cameras from Sony without a LANC port.
Silent and precise
N BOT is incredibly quiet and smooth in operation, and won't interfere with in-studio shooting or live events.
It stores and recalls up to 10 positions with a precision less than 0.1degrees.
Many ways to control and receive
Control the head using a web browser or Visca IP, using SHARON proSTICK or Skaarhoj controllers.
Receive video into any NDI enabled product like vMix, Tricaster or OBS
Custom NDI chip designed by Salrayworks
SalayWorks enables full NDI encoding technology in Intel-based FPGAs. This means that NDI upgrades can be freely adjusted in all cameras for future NDI SDK upgrades
Physical specifications
Dimensions: 128 x 157 x 157 (HxWxD)
Weight: 1,87 kg
Max camera weight: 3,2 kg
Power consumption: Max 30 W
Operation temperature: 0~45℃
In the box:
- V BOT pan tilt head
- DC power supply
- Quick relese camera plate
- LANC cable
Technical spesifications
Connections:
Input
- RJ45, POE+ support
- HDMI 2.0
- Power input, 12V DC barrel jack
Output
- LANC 2,5mm output
- Sony Multiport/tally output/*zoom servo
* Future function
Video output: NDI output at max 1080p60
The NDI® hardware (silicon-based) achieves about 140Mbit at 1080p60 and is visually lossless.
Pan: 340°
Tilt: down 35°, up 20°
Max Speed: 15° per second
Tally: Internal LED and external port
Presets: 10 presets built in, stores pan and tilt
Cameras not included. * Sony Multiport adapter is bought separately
