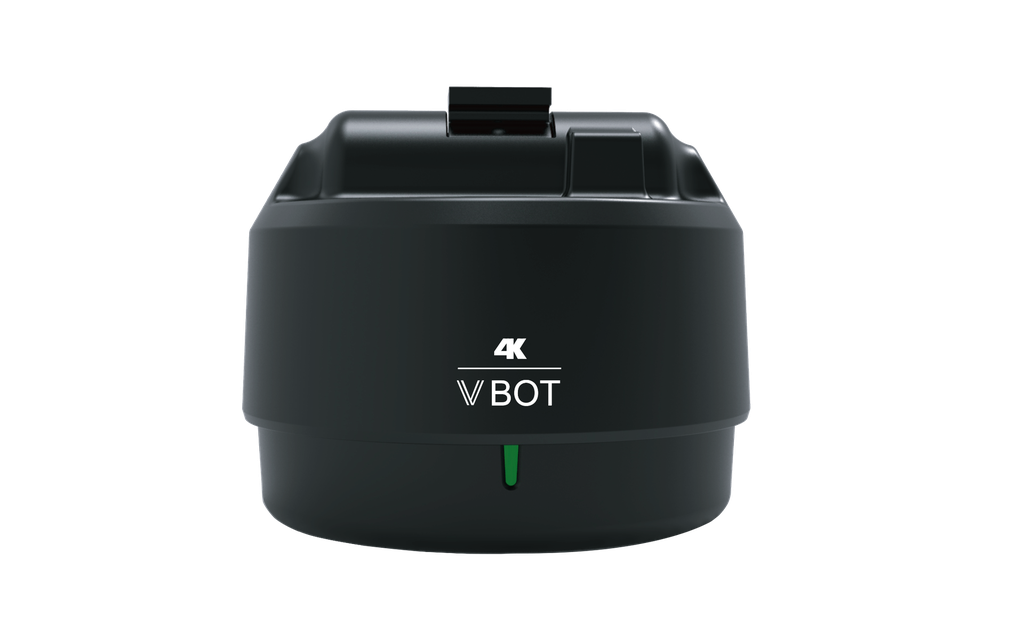

V Bot
Motorisert pan tilt hode, Maks vekt 3,2kg, HDMI gjennomgang og reclocking, LANC, Sony og Canon XC støtte
Unit of Measure Name:
Stk
Intern referanse:
SRW-V-BOT
Compatibility with a wide array of cameras
With a LANC connection you can control many video cameraes on the market today. Control functions such as zoom, focus, iris, shutter and commands such as toggle recording and power on or off. Notice that not all cameras support full control over LANC
With the additional Sony Multiport adapter* you can also control cameras from Sony without a LANC port.
Compatible with CANON XC
Communication protocol used by Canon XC series cameras for controlling various functions remotely. Adjust settings such as zoom, focus, aperture, and recording start/stop. Simultaneously store absolute values of ZOOM, PAN, and TILT.
Physical specifications
Dimensions: 128 x 157 x 157 (HxWxD)
Weight: 1,87 kg
Max camera weight: 3,2 kg
Power consumption: Max 20 W
Operation temperature: 0~45℃
In the box:
- V BOT pan tilt head
- DC power supply
- Quick release camera plate
- LANC cable
Technical spesifications
Connections:
Input
- RJ45, POE+ support
- HDMI 2.0, up to 4K60
- Power input, 12V DC barrel jack
Output
- LANC 2,5mm output
- HDMI 2.0, up to 4K60
- Sony Multiport/tally output
Pan: 340°
Tilt: down 35°, up 20°
Max Speed: 15° per second
Tally: Internal LED and external port
Presets: 10 presets built in, stores pan and tilt
Focus, zoom preset store is only available using a camera with Canon XC protocol
Cameras not included. * Sony Multiport adapter is bought separately
