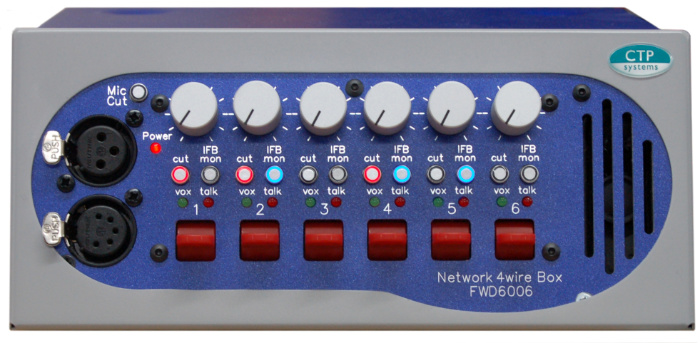

Dante-enabled four wire box with six four wire inputs, six four wire outputs plus six IFB inputs. A mix output and a hot microphone output are also available on the network.

In addition to the network connections three of the four wire inputs and outputs are mirrored onto the rear of the unit for local analogue use as well as two IFB inputs.

These five analogue inputs and three analogue outputs may now be used as a Dante breakout box (new feature with v3 firmware) These are selectable via Dante Controller and may also be assigned to analogue versions of any of the Dante inputs or outputs. Operational adjustments are simple using our version 3 firmware incorporating the FWD6006 internal web server. Power may be supplied by PoE, an external 12 volt supply or battery or via the IEC mains inlet.

Each channel has a cut switch, a ifb monitor button plus a vox incoming audio present indicator.

Press the talk keys down for momentary operation and up to latch. The latch operation can be defeated if required. Units can be supplied with a headphone jack or a 5 pin XLR headset connector.

There is also a microphone cut button. When a talk key is pressed incoming audio to the loudspeaker is normally dimmed to prevent feedback, the level may be adjusted or defeated as required.

The FWD6006 has a secondary ethernet interface which may be used a switch output or for network redundancy.

Mains requirement is 110-240VAC 50/60Hz.

Dimensions: 100mm high, 180mm deep, 200mm wide.
